Weld Arch (purchase disassembly) ref.7007

€2,248.00

The WeldArch is a solar arch that fits sailboats with a transom width of up to 4.5 metres (please enquire if the measurement is greater). It has a high load capacity, with its davits capable of supporting a dinghy weighing up to 200 kg.

The WeldArch consists of two arches (Ø43 mm tube), one fixed to the transom and the other to the deck using Ø120 mm plates, which have holes for the cables to pass through. The two arches are joined together by Ø30 mm tubes.

The davits are made of Ø48.3mm tubing and reinforced internally with Ø43mm tubing. They are connected to the arches with screws using bridges.

The WeldArch is a solar arch that fits sailboats with a transom width of up to 4.5 metres (please enquire if the measurement is greater). It has a high load capacity, with its davits capable of supporting a dinghy weighing up to 200 kg.

The WeldArch consists of two arches (Ø43 mm tube), one fixed to the transom and the other to the deck using Ø120 mm plates, which have holes for the cables to pass through. The two arches are joined together by Ø30 mm tubes.

The davits are made of Ø48.3mm tubing and reinforced internally with Ø43mm tubing. They are connected to the arches with screws using bridges.

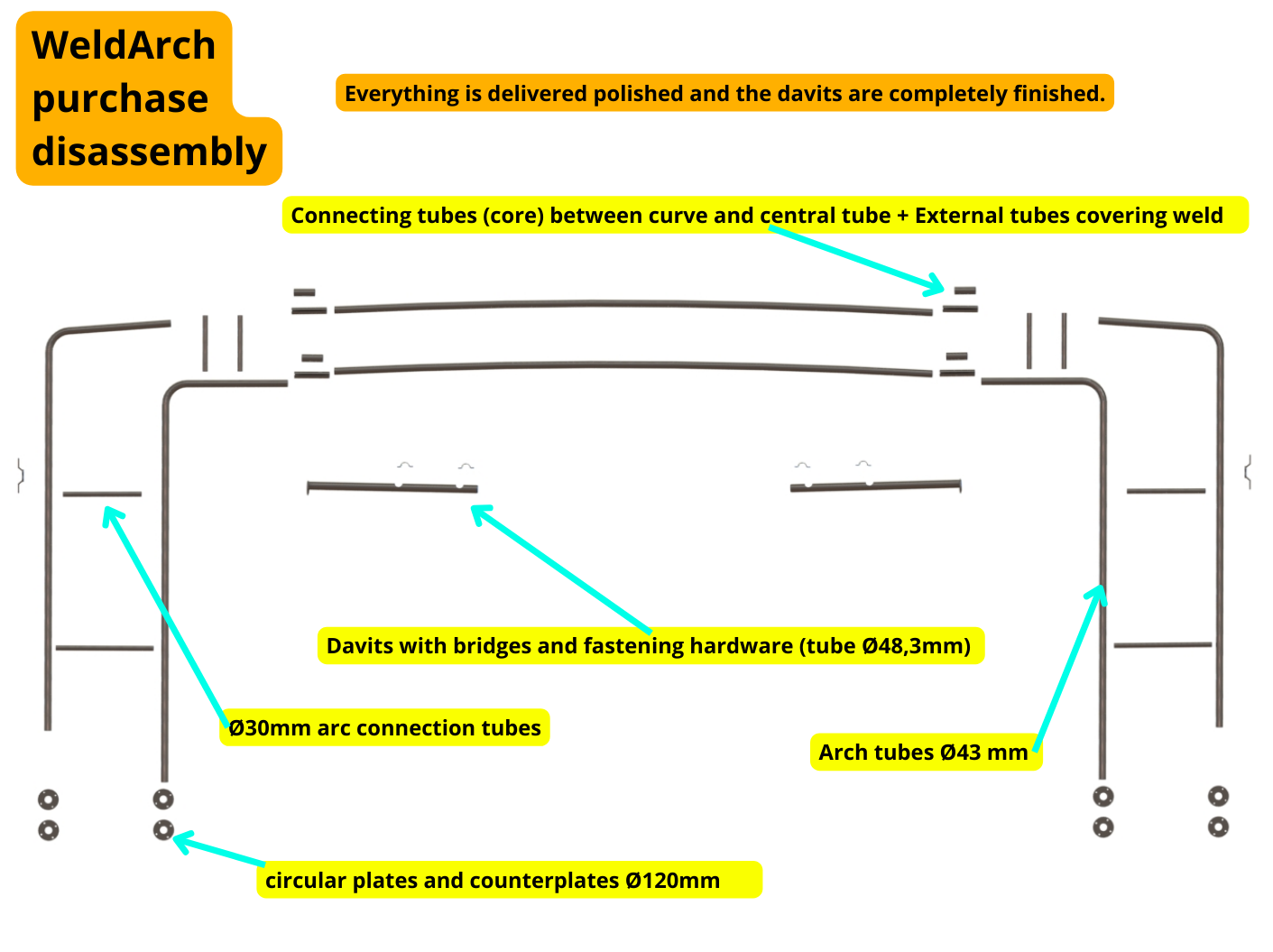

In this case, we will send you all the parts, which consist of:

  • 4 tube arches Ø43mm

  • 2 central tubes Ø43mm

  • 4 connecting tubes between arches and central tubes (Ø40mm)

  • Ø30mm tubes to join both arches

  • 2 fully finished davits, with welded rings, polished and with slots for easy assembly.

  • 4 bridges and screws to mount davits

  • 4 Ø120mm plates to attach the arches to the deck and transom

  • 2 cleats

Then you can adjust and weld the arch or hire a metalworker to do this work for you.
