Projects in progress

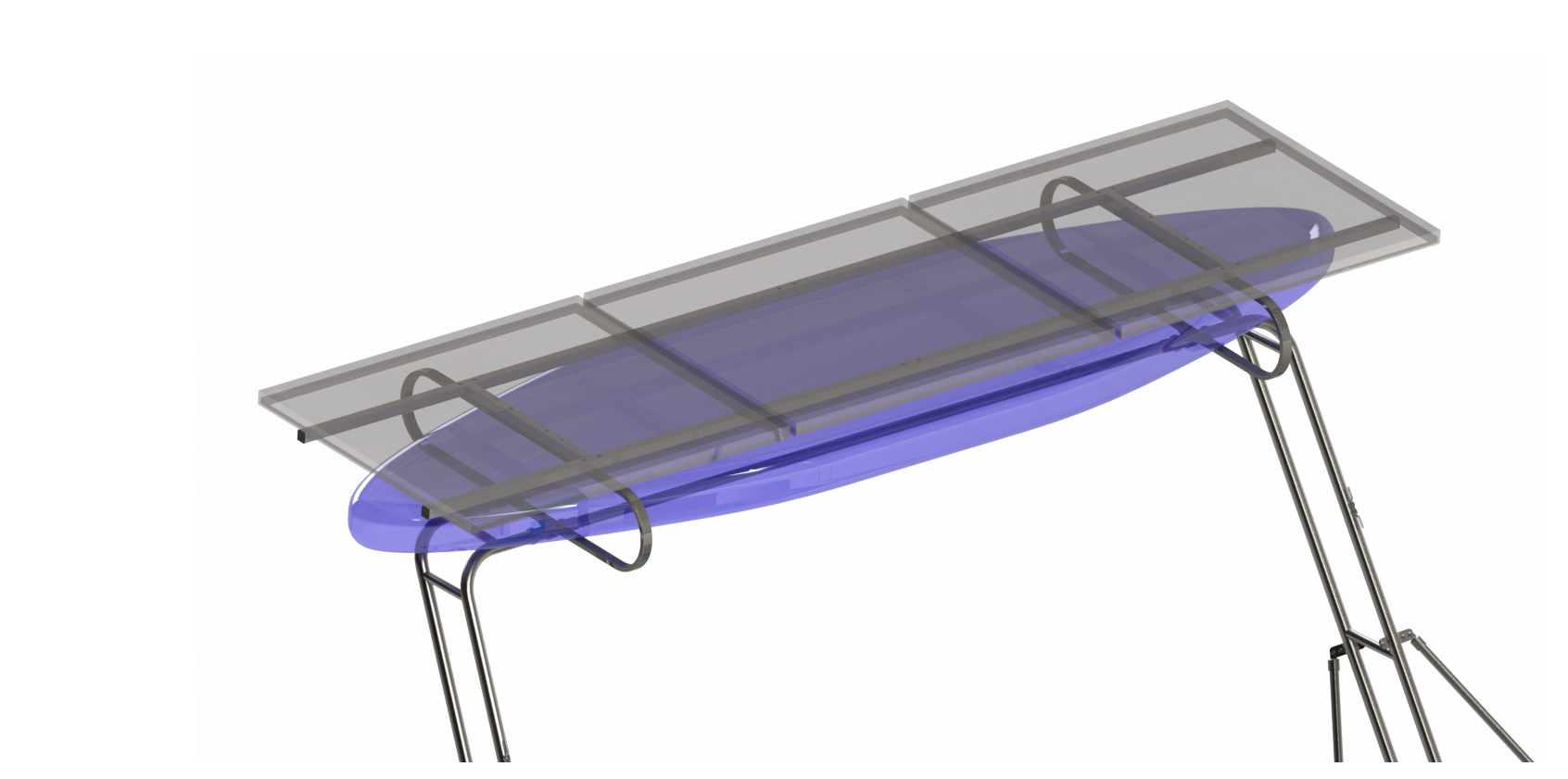

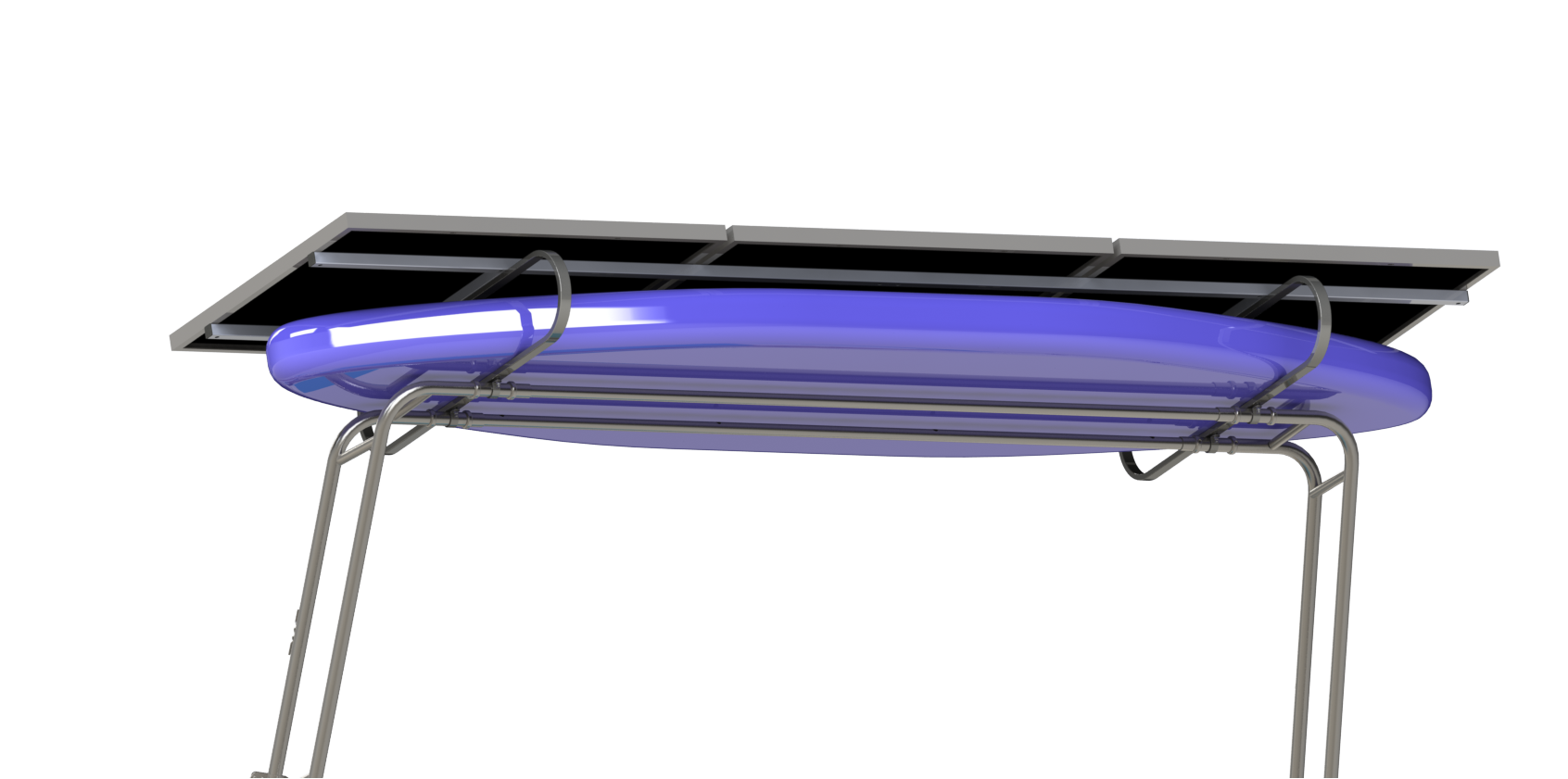

Paddle surf board stand

This is a new accessory for hanging a paddle surfboard above the Eolios Arch using ring-shaped supports. Above these are cross tubes for attaching solar panels.

This accessory consists of the following:

  • Two 90x20cm paddle surfboard rings (inside of the rings), made of 30x15mm tubing, electropolished finish. With bridges to attach to the Eolios Arch.

    Two tubes 3 metres long (30x30mm square) to support solar panels (holes must be drilled during installation). Polished finish with plastic caps at the ends.

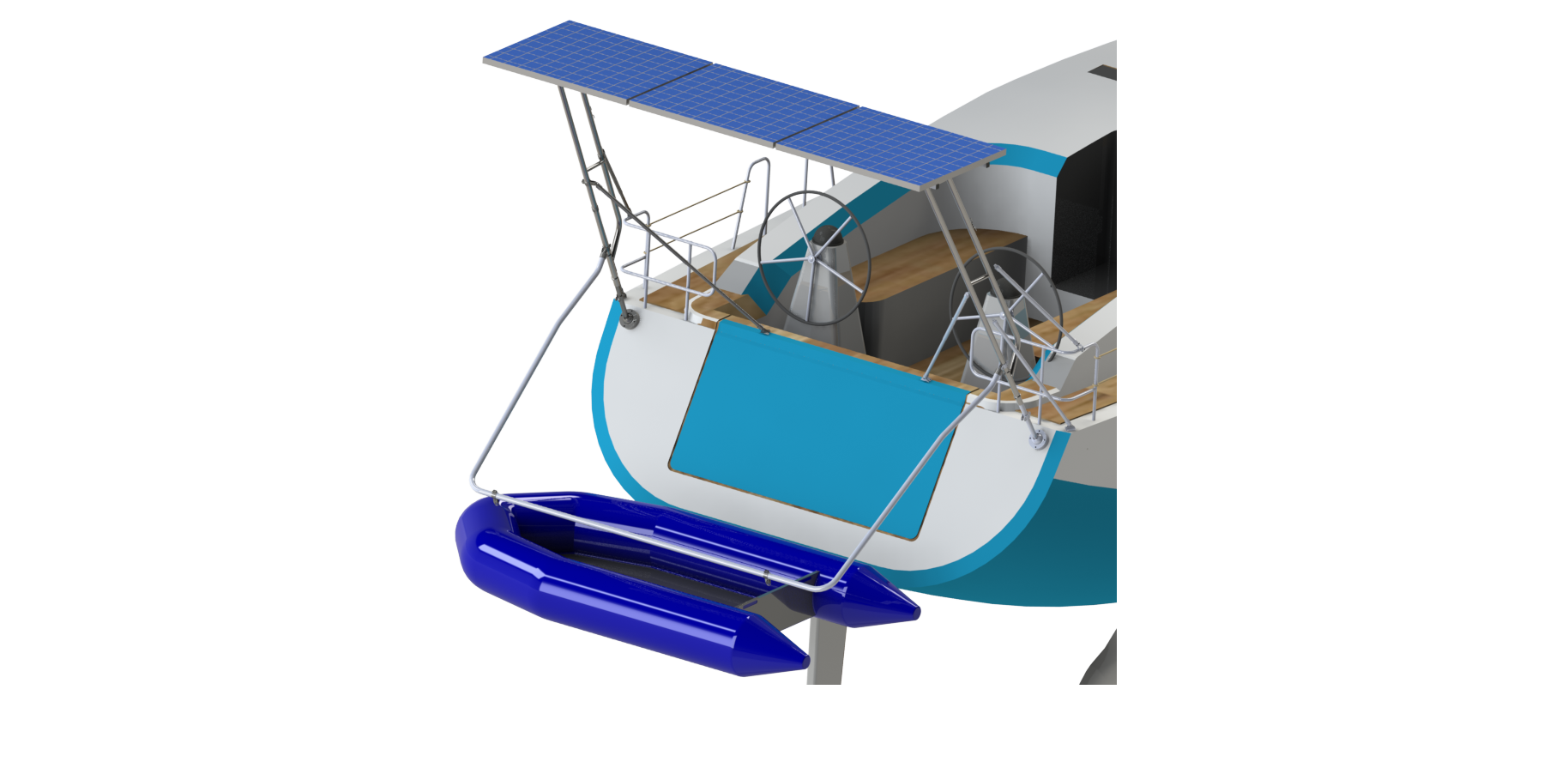

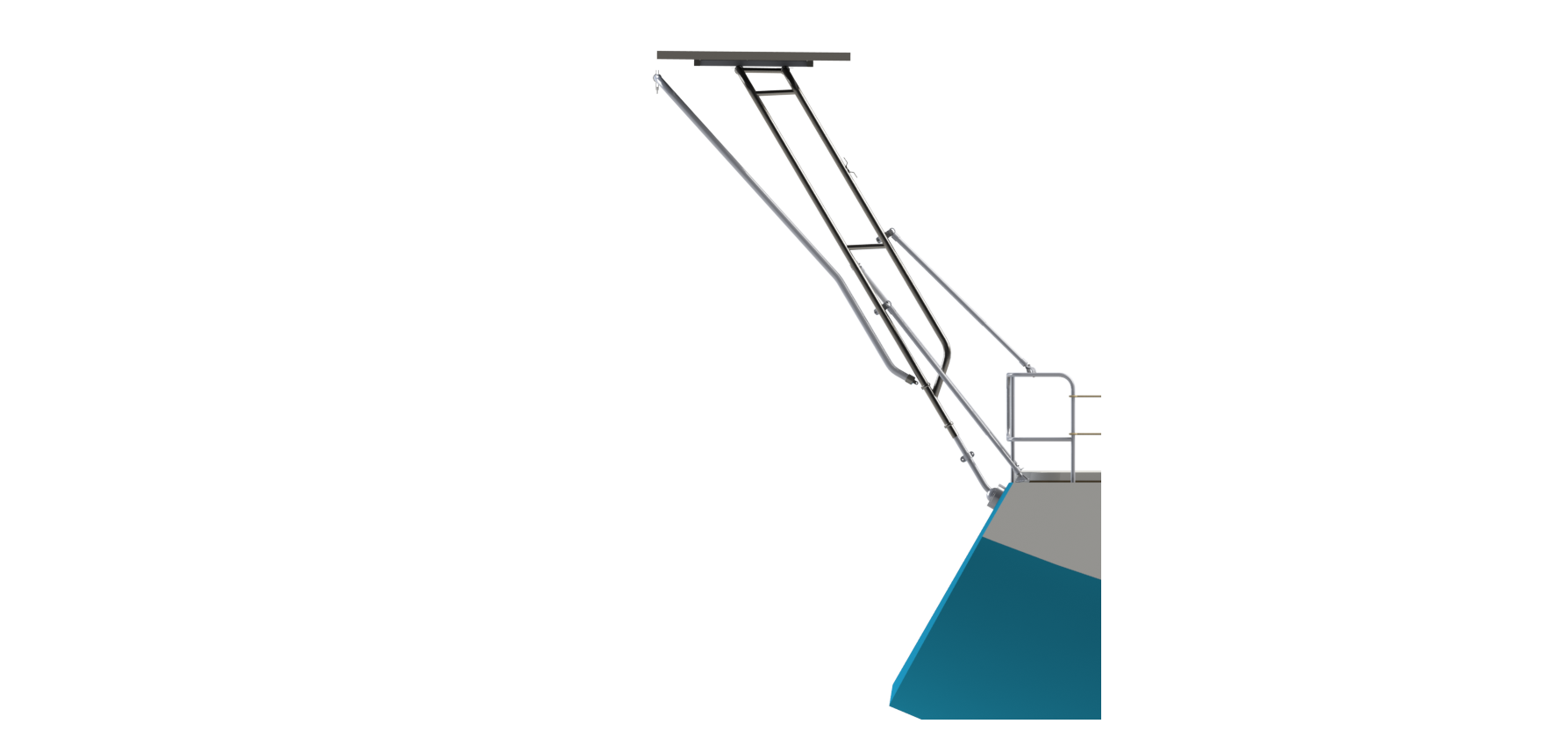

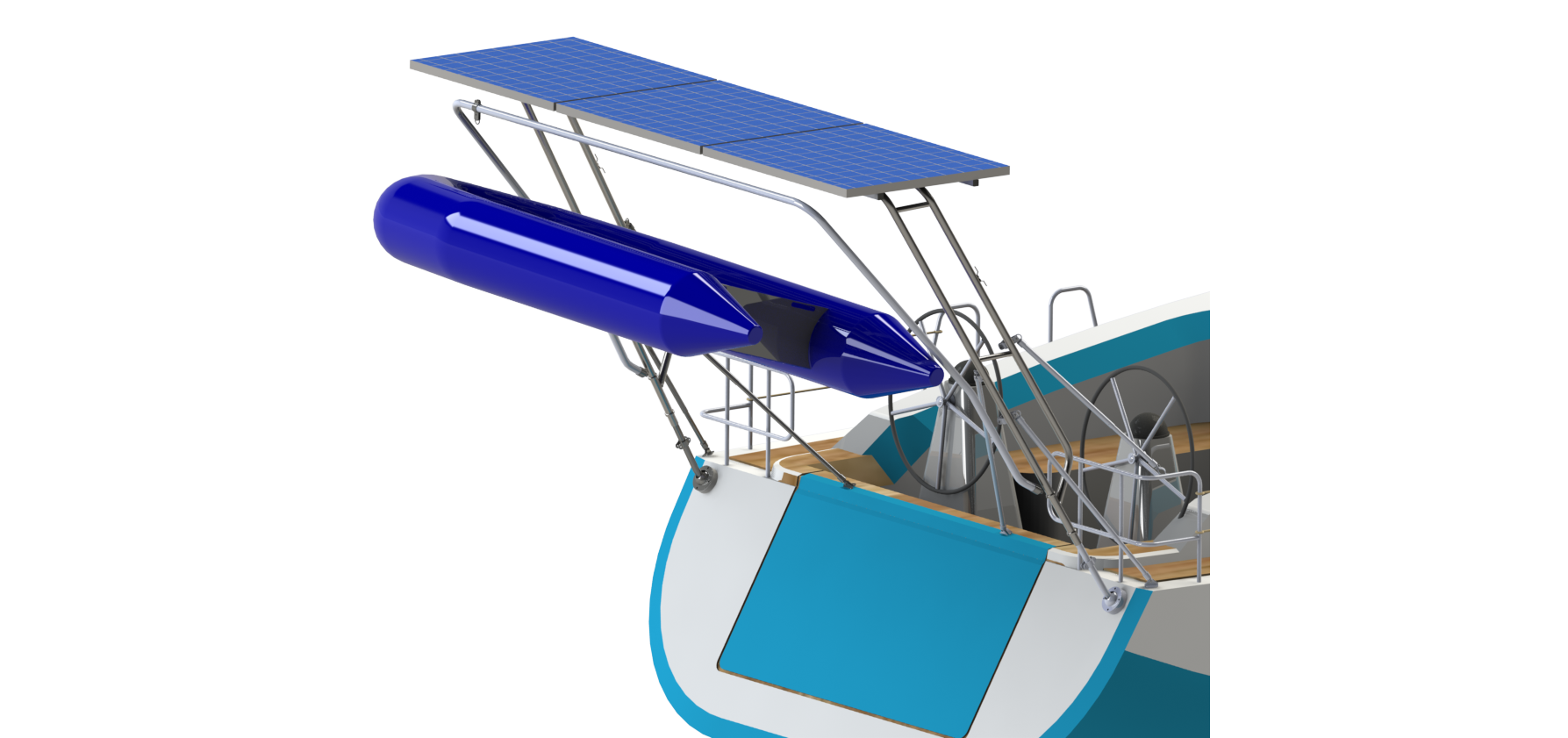

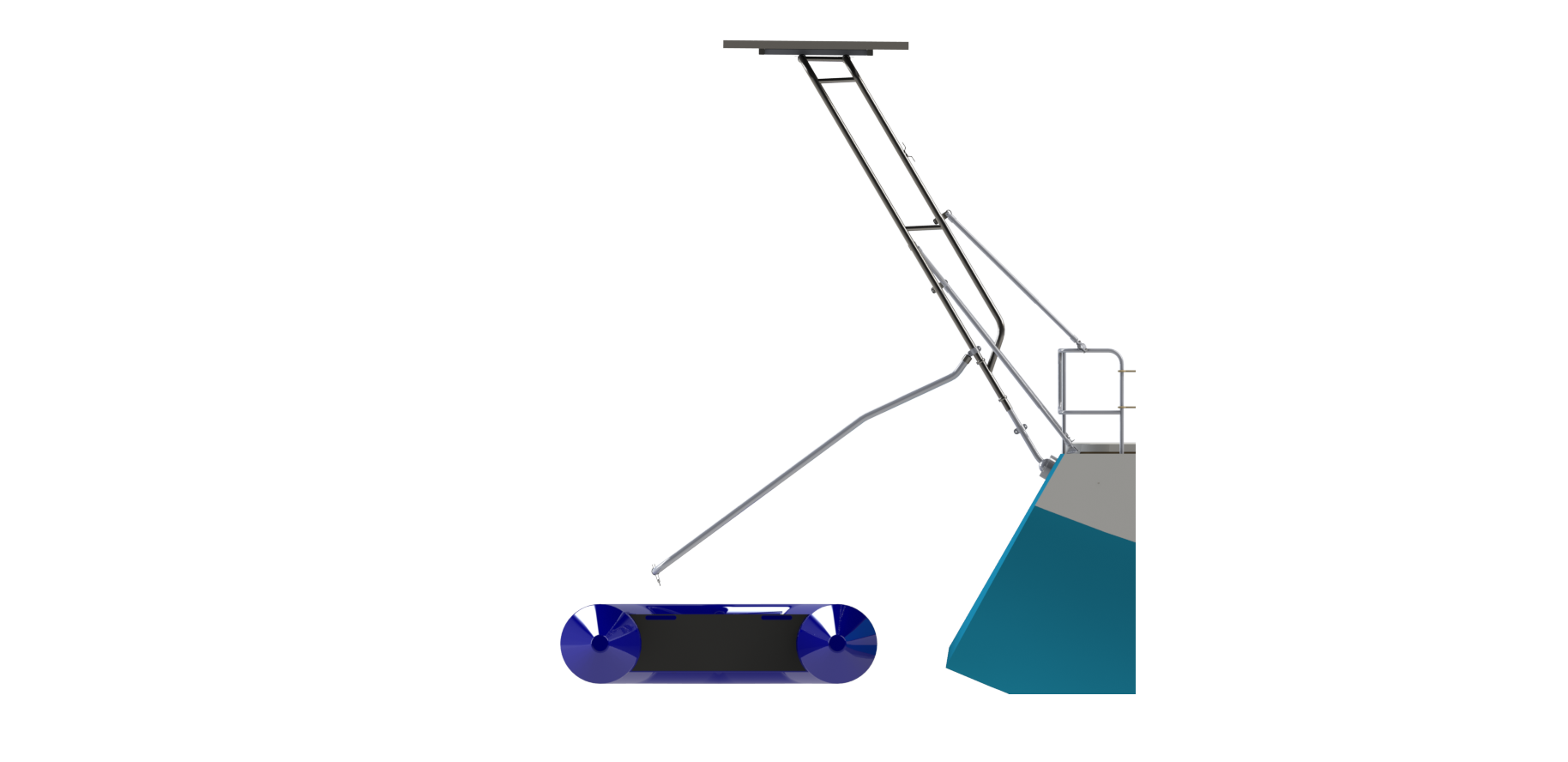

Pivoting davit arch

This is a 316L stainless steel arch with a Ø35mm tube (the same as the Eolios Arch tube). It acts as a davit for hoisting the dinghy. The two advantages of this system are: it retrieves the dinghy away from the transom and it is hoisted with a single line connected to a winch.

This pivoting davit arch is designed in three pieces, which are easily assembled on site like all our standard arches, so that we can comply with standard shipping measurements in European logistics.

This accessory consists of the following:

  • Two hinge flanges that go in the designated place on the Eolios Arch (defined in the assembly instructions)

  • Two curved Ø35mm tubes that form the sides of the pivoting davit.

  • One Ø30x2mm tube to join the sides (they are joined using the same system as the Eolios Arch).

  • Five simple pulleys to redirect the pivoting arch to a winch.

  • Two small cleats welded to the side tubes.

  • Two clamps with rings and 2 2-metre ropes with carabiners (attached to the dinghy).

  • 20 metres rope.

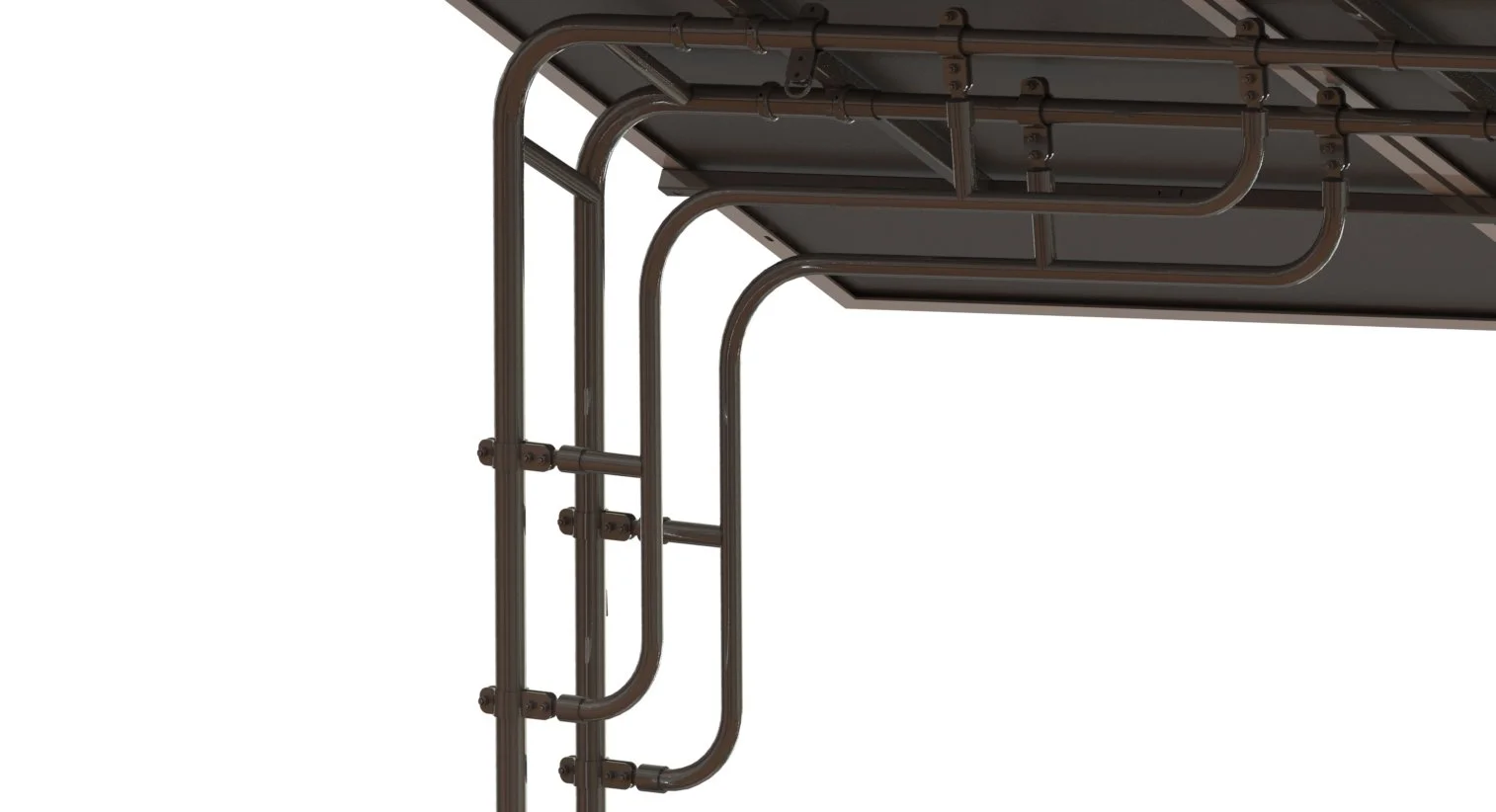

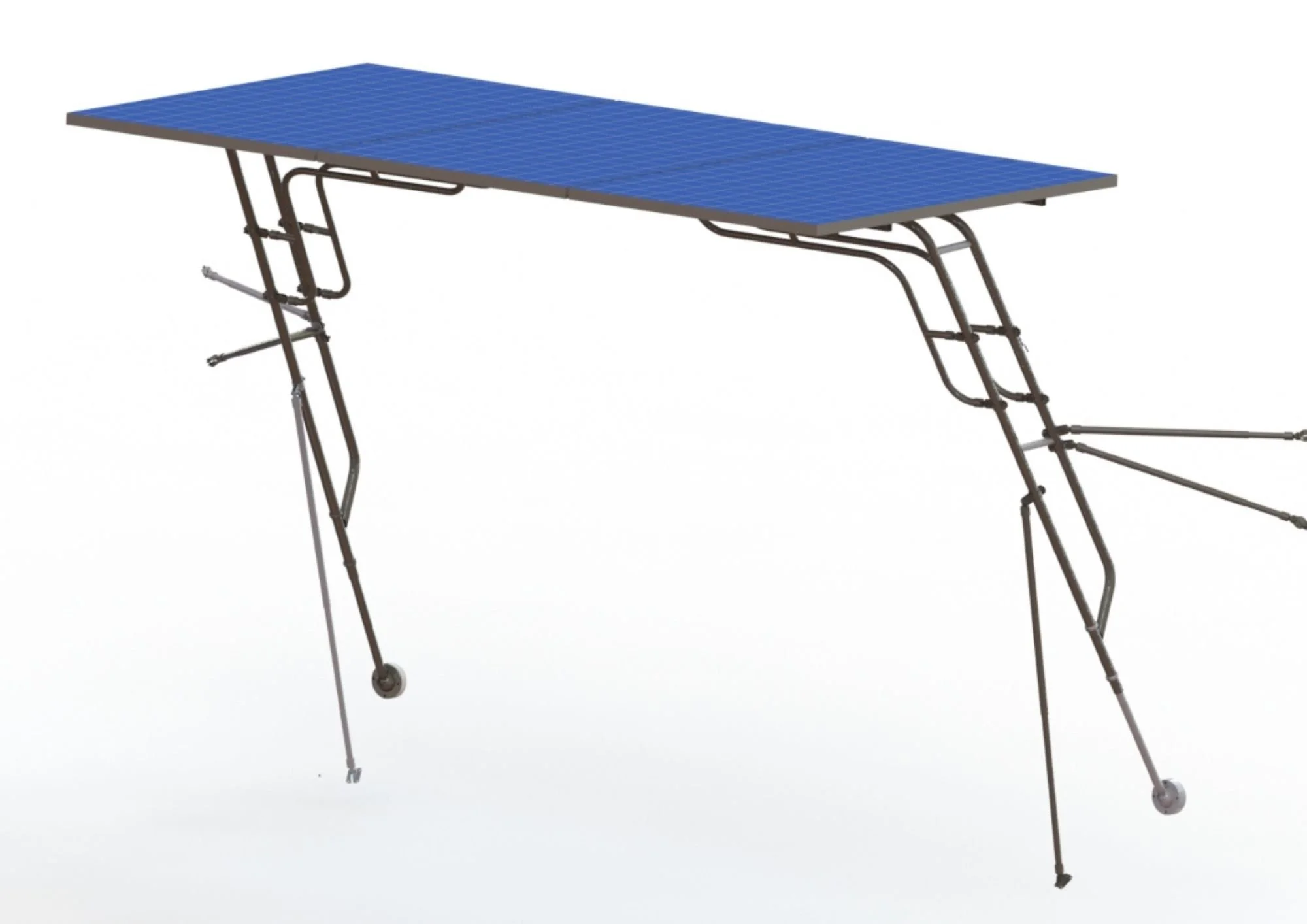

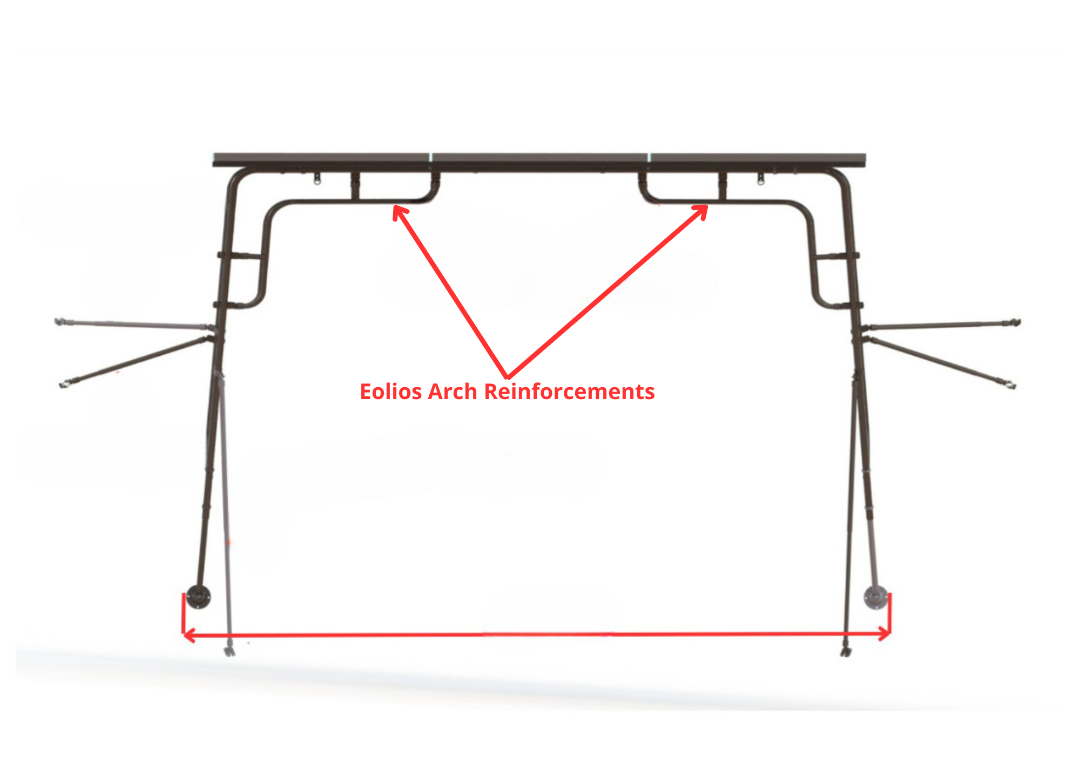

Eolios Arch Reinforcements

This reinforcement is designed for boats that mount the Eolios Arch at or beyond the standard width limit (3.5 metres or more at the base). This is especially useful if the weight of the solar panels is causing the Multi Arch tubes to bend in the midship section.

They also serve as reinforcement bars for installing our standard davits without the usual cross reinforcement bars.

This accessory consists of the following:

  • Two Ø25mm tube curves with welded ends (4 if you are installing davits)

  • Eight clamps for attaching to the Multi Arch (16 if you are installing davits)
